| 外形尺寸: |
9850,9650,9550,9000,8800,8000,7750,7600×2550,2500,2480×3960,3900,3850,3750,3650 (mm) |
货箱尺寸: |
×× (mm) |
| 总质量: |
15400,15000,14505 |
载质量利用系数: |
|
| 整备质量: |
15270,15205,14870,14805,14375,14310 |
额定载质量: |
|
| 挂车质量: |
|
半挂鞍座: |
|
| 驾驶室: |
|
前排乘客: |
2,3 |
| 接近角/离去角: |
17/24,17/18,17/13,19/20 |
前悬/后悬: |
1400/1890,1400/2190,1400/2390,1430/1860,1430/2160,1430/2360,1430/1890,1400/1920,1400/2390,1430/2640,1400/2435,1455/2385,1430/2440,1430/1700,1400/2670,1430/2410,1430/2560,1430/2405 |
| 轴荷: |
6500/11500 |
轴距: |
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100 |
| 轴数: |
2 |
最高车速: |
89,98 |
| 油耗: |
|
弹簧片数: |
7/9+6,8/10+8,8/9+6,11/10+8,3/10+8 |
| 轮胎数: |
6 |
轮胎规格: |
10.00R20 18PR,275/80R22.5 18PR |
| 前轮距: |
1876,1896,1920,1950,1914,1934,1980,2000,1815,1860 |
后轮距: |
1820,1860,1800,1840 |
| 制动前: |
|
制动后: |
|
| 制操前: |
|
制操后: |
|
| 转向形式: |
|
启动方式: |
|
| Vin车辆识别代码: |
|

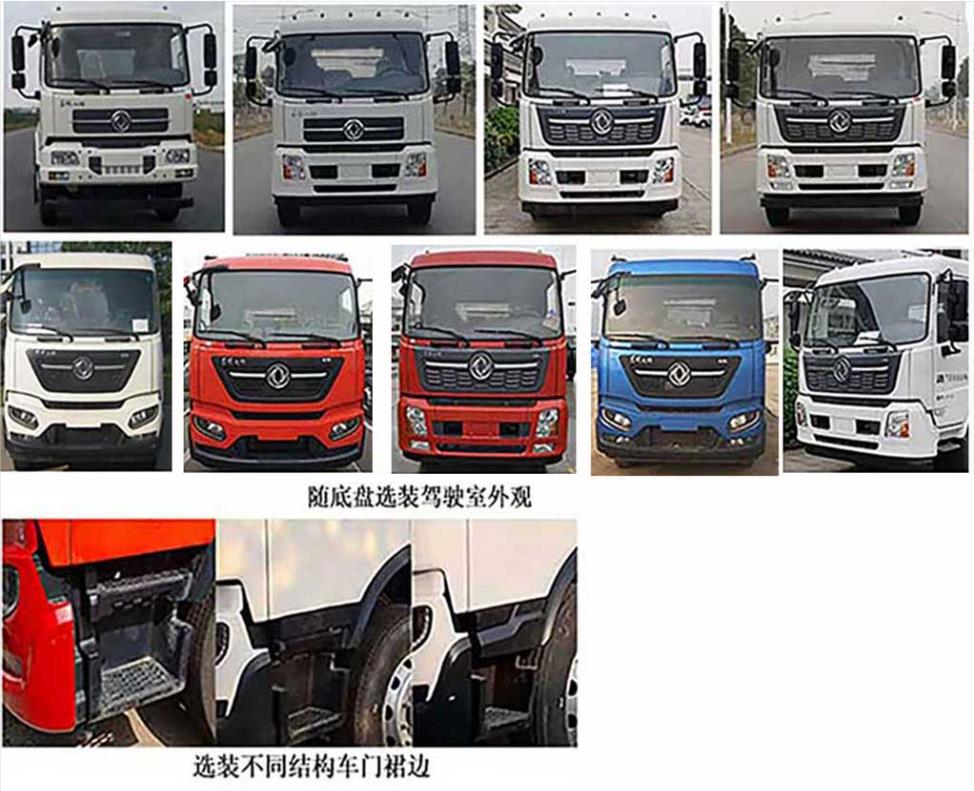

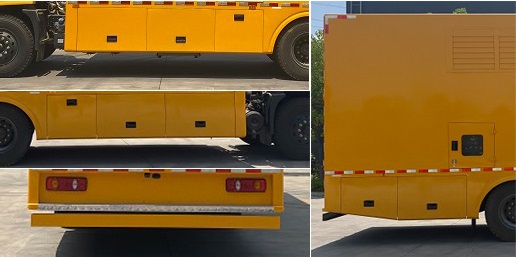

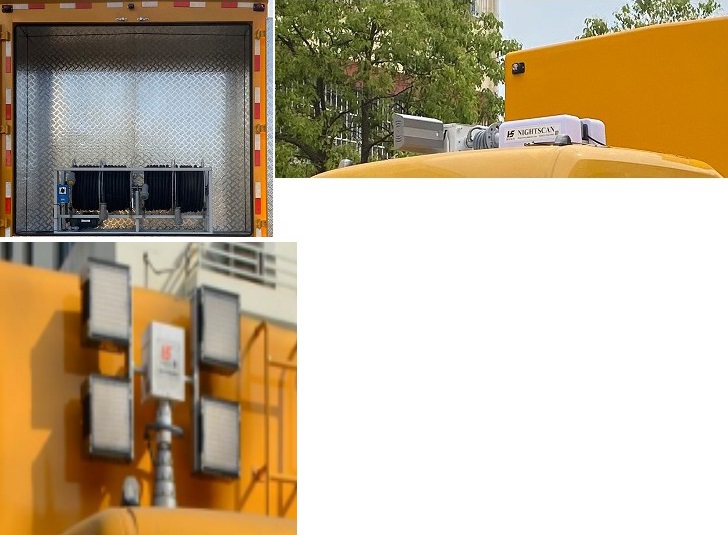

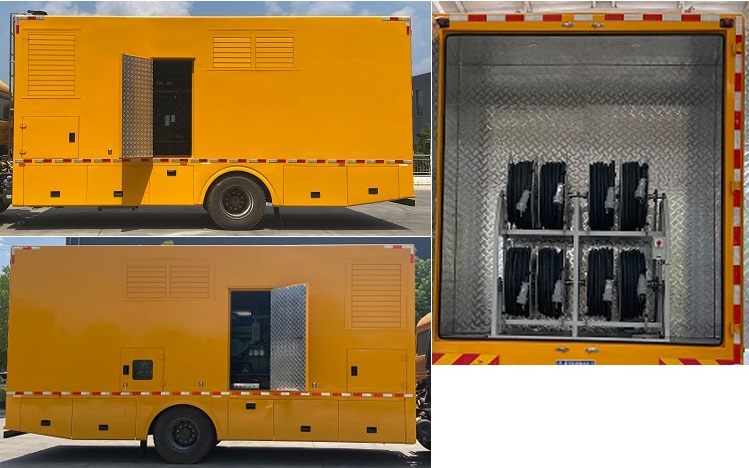

| 该车装备发电机组,电缆绞盘,主要用于应急供电.侧面防护装置为裙板结构,材料为Q235A碳钢,后部防护装置材料:Q235A碳钢.连接方式:采用焊接连接.后部防护断面尺寸(mm):120×60,后部防护离地高度(mm):400.ABS型号/生产厂家:3631010-C2000/东科克诺尔商用车制动系统(十堰)有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限公司,ABS-E 4S/4M/采埃孚商用车系统(青岛)有限公司,J ABS/焦作博瑞克控制技术有限公司.选装限速装置,限速89km/h.整车长/轴距/前悬/后悬(mm)对应关系为9850/5300/1400/3150,9850/5300/1430/3120,9850/5300/1455/3095,9650/5100/1400/3150,9650/5100/1430/3120,9550/5000/1400/3150,9550/5000/1430/3120,9550/5000/1455/3095,9000/5000/1400/2600,9000/5000/1430/2570,9000/5000/1455/2545,9000/4700/1400/2900,9000/4700/1430/2870,8800/4500/1400/2900,8800/4500/1430/2870,8000/4200/1400/2400,8000/4200/1430/2370,7750/3950/1400/2400,7750/3950/1430/2370,7600/3800/1400/2400,7600/3800/1430/2370.选装升降照明灯,该灯仅在停车状态下起夜间照明作用,行驶过程中不能点亮.选装单排电缆绞盘.随底盘选装驾驶室,选装不同结构车门裙边. |
